SPECIFICATIONS

Antenna Type: Fixed

Brand Name: XIAOMI

Choice: yes

Frequency: 5 GHz

Frequency Band Class: Dual-Band

High-concerned chemical: None

Origin: Mainland China

Recommended Uses: Home

Standards And Protocols: Wi-Fi 802.11g

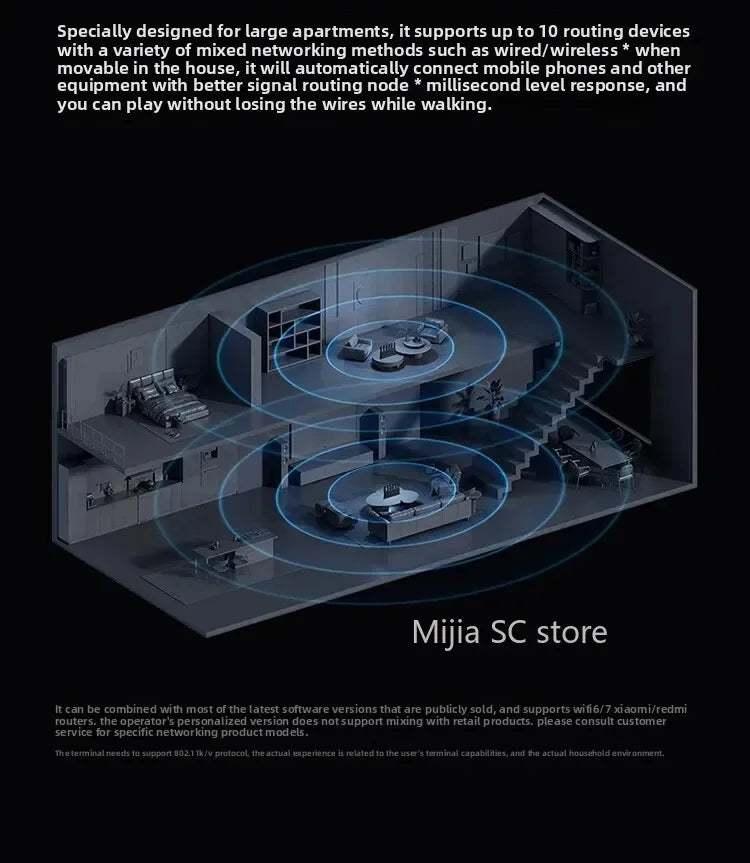

Support Mesh: Support

Type: Wired

Wireless Communication Standard: 802.11.a

Wireless transmission rate: 1800M

With Modem Function: No

Please note :

At present, this router is only Chinese version. When you connect to the Mi Home APP, you need to change the region to Chinese Mainland. Thank you.

6453Mbps is the theoretical maximum wireless speed for both 2.4GHz and 5GHz dual band concurrent, but the actual speed may vary due to environmental factors.



The comparative data is sourced from Xiaomi laboratory, and the compared products are all Xiaomi's own products. The actual experience may vary depending on the terminal and environment. Please refer to the actual situation.

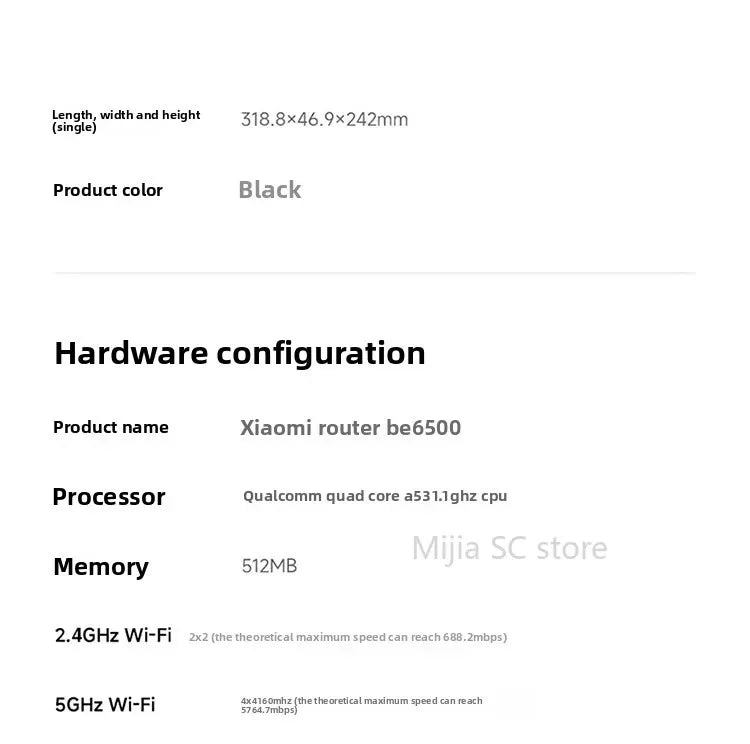

Hardware configuration

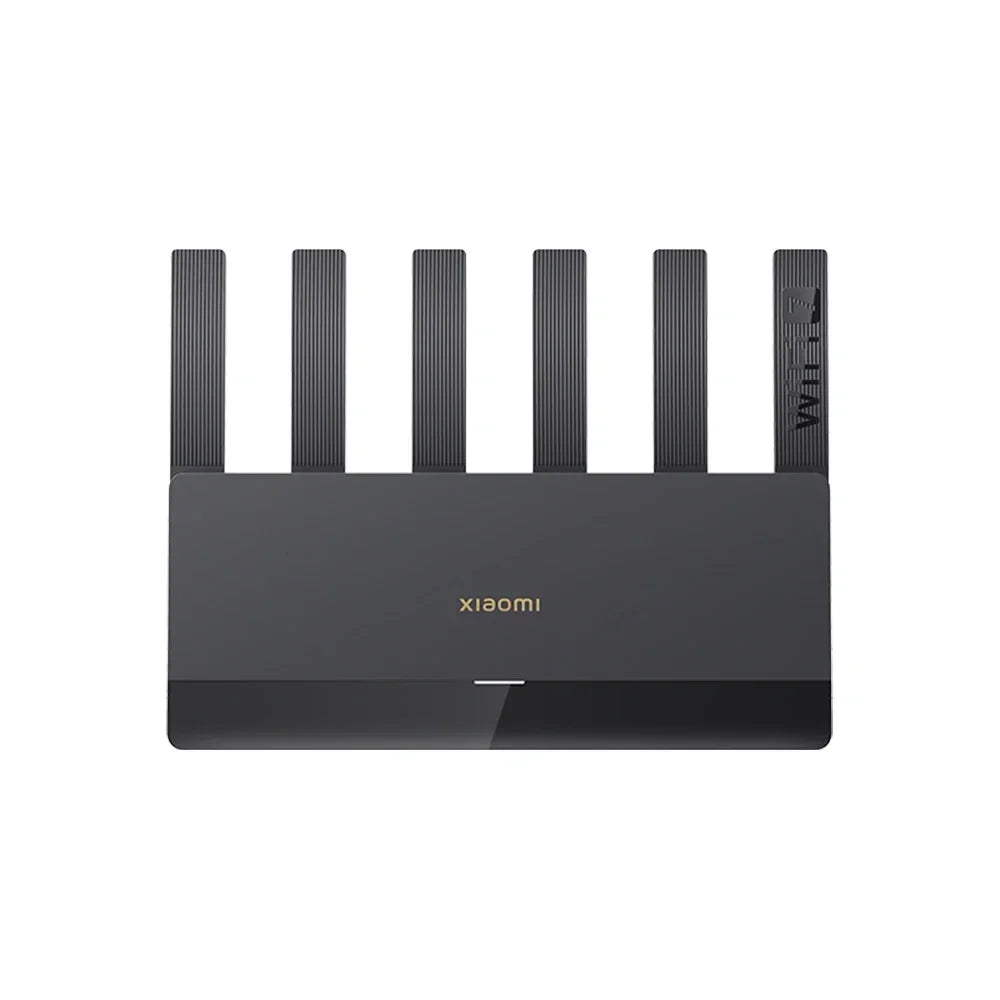

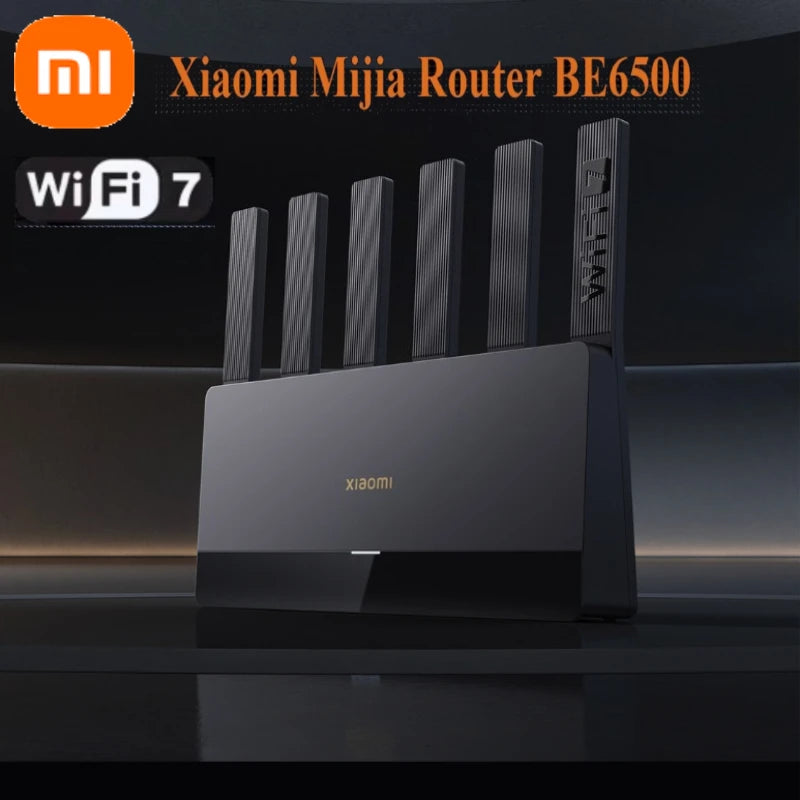

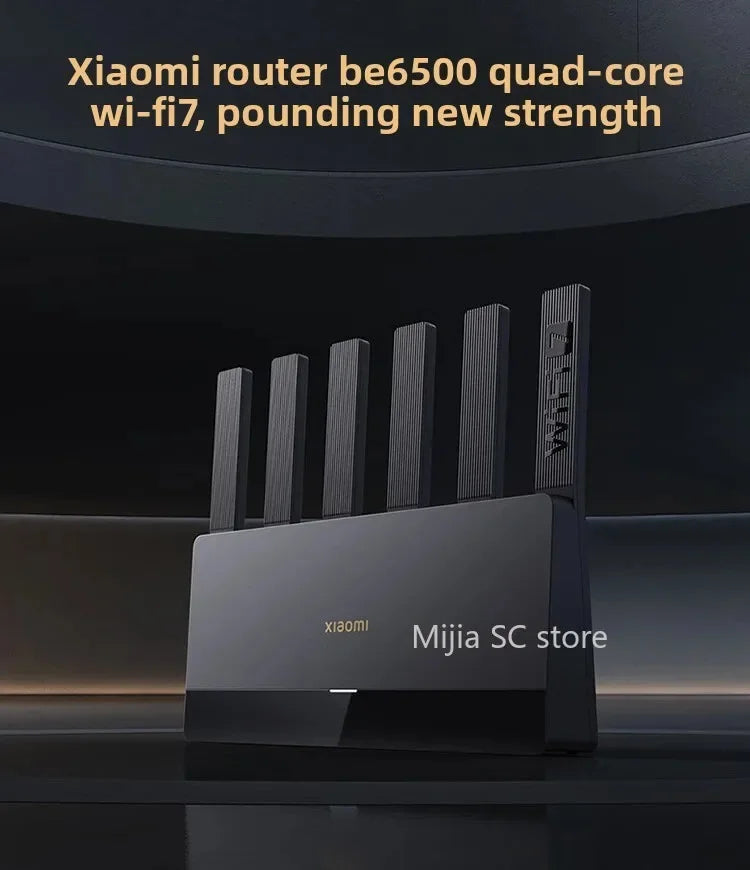

Product name --Xiaomi router BE6500

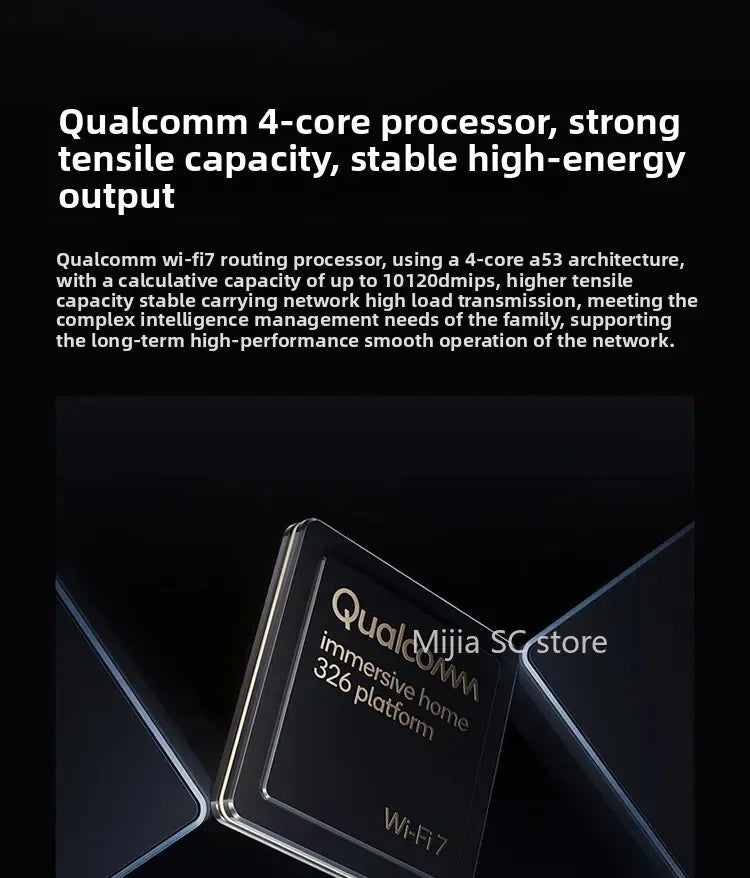

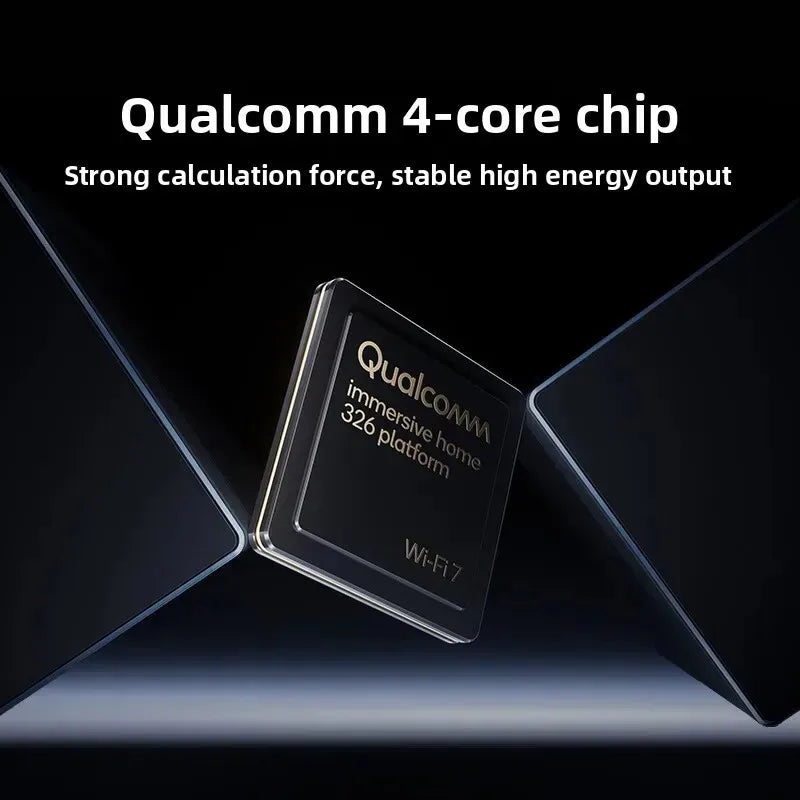

Processor --Qualcomm quad-core A53 1.1GHz CPU

Memory --512MB

2.4GHz Wi-Fi-- 2X2(theoretical maximum speed up to 688.2Mbps)

5GHz Wi-Fi-- 4X4 160MHz (theoretical maximum speed up to 5764.7Mbps)

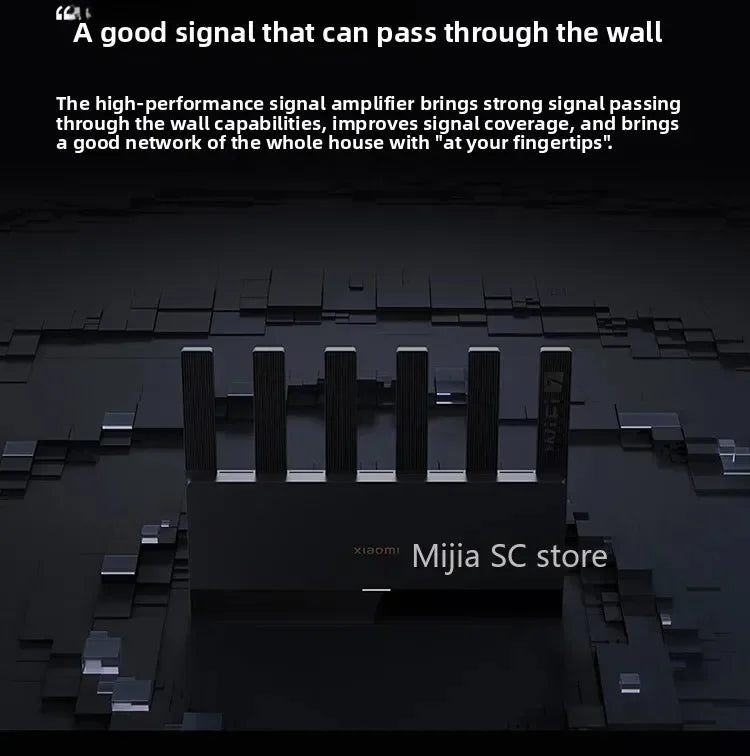

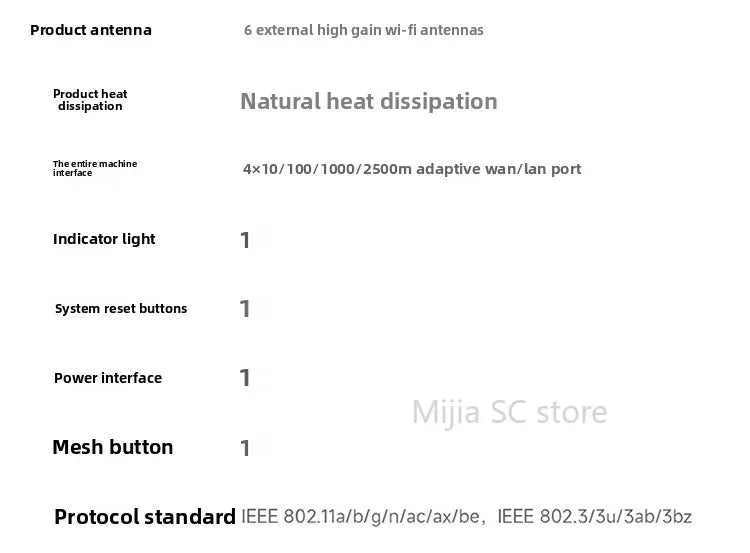

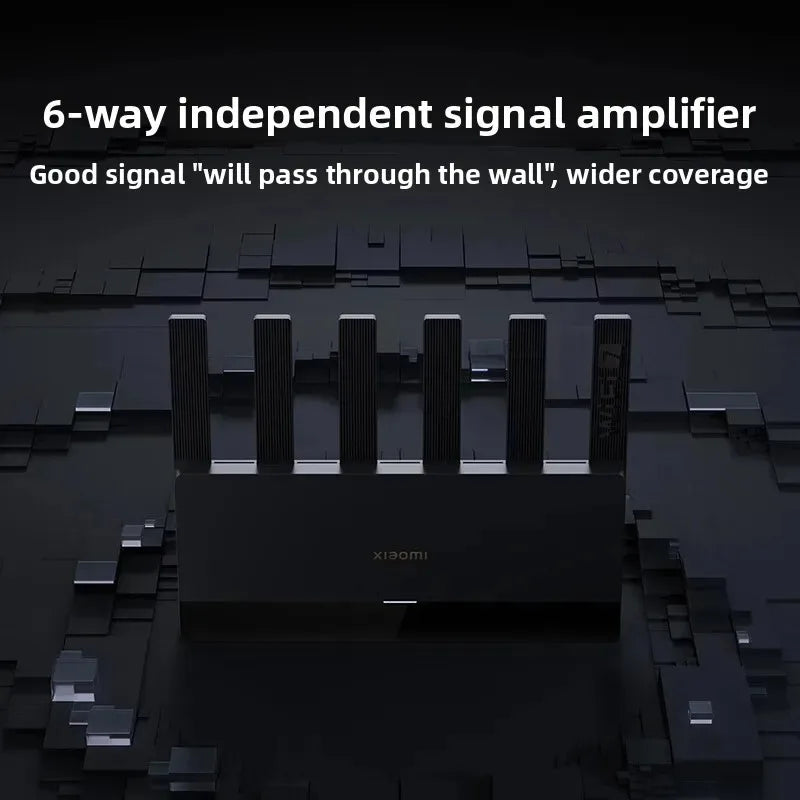

Product Antenna --6 external high-gain Wi-Fi antennas

Product heat dissipation -- natural heat dissipation

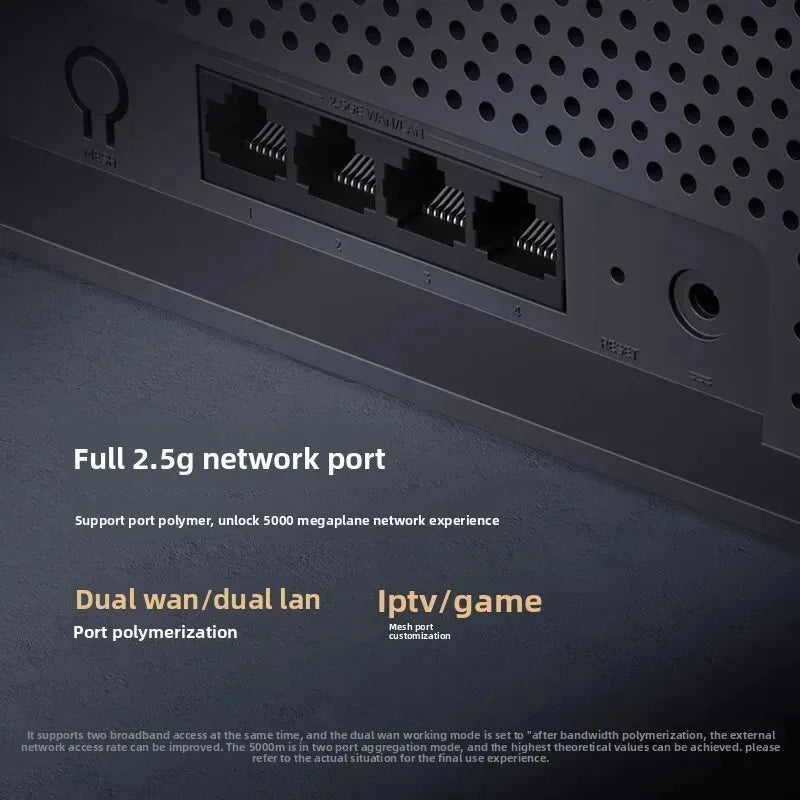

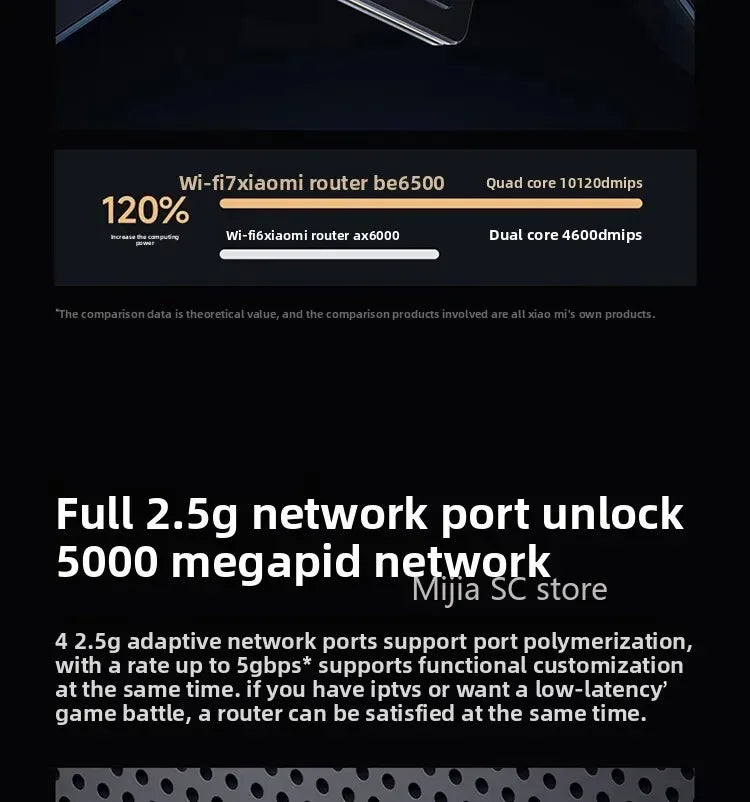

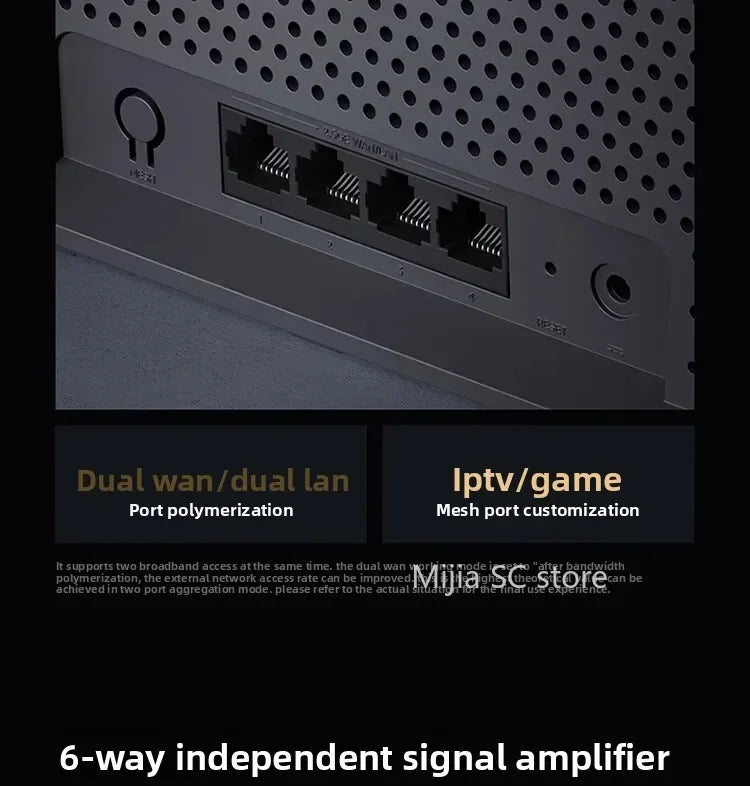

Overall interface: 4 x 10/100/1000/2500M adaptive WAN/LAN port

Indicator light --1

System reset button --1

Power port --1

Mesh keys --1

Protocol standards -IEEE 802.11a/b/g/n/ac/ax/be, IEEE 802.3/3u/3ab/3bz

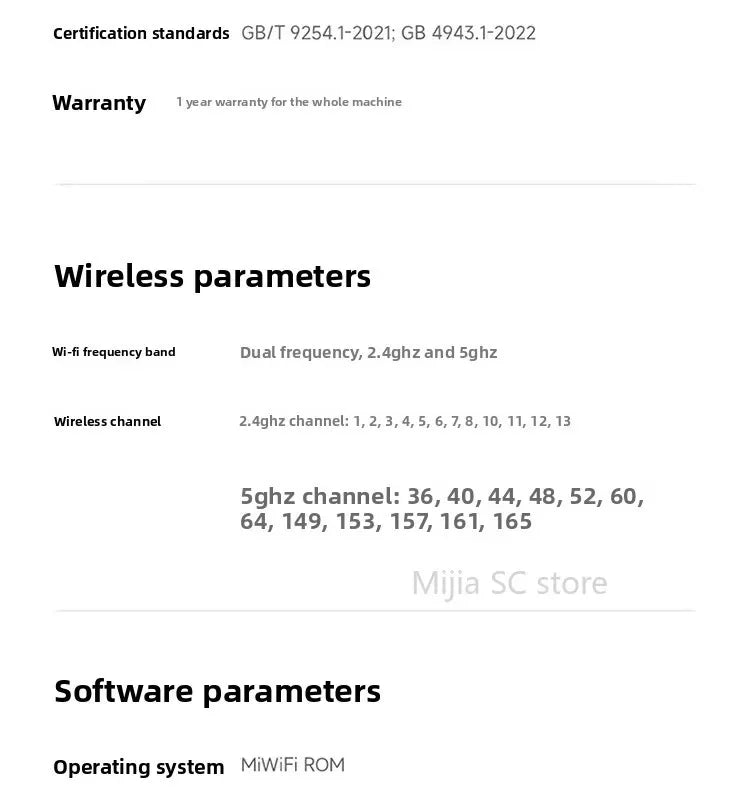

Wireless parameter
Wi-Fi bands - dual-band, 2.4GHz and 5GHz
Wireless channel
2.4 GHz channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
5 GHZ channel: 36,40,44,48,52,56,60,64,149,153,157,161,165
Software parameter
Operating system --MiWiFi ROM

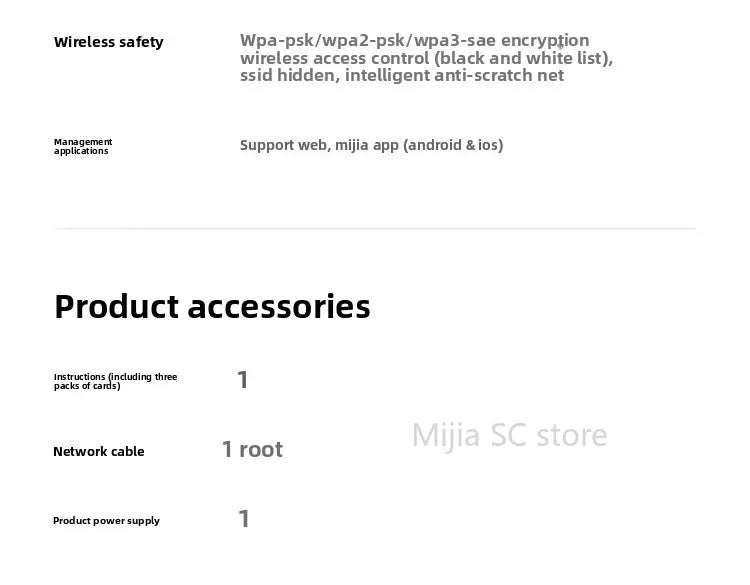

Wireless security -WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, intelligent anti-fouling network
Management application -- Support Web, Mijia App (Android &iOS)

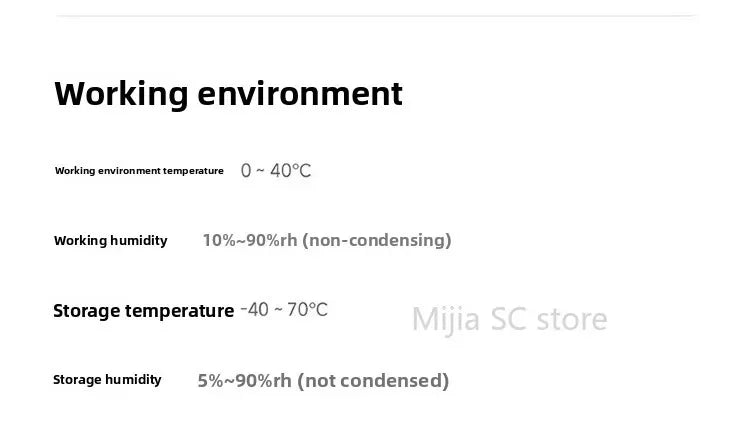

Working environment
Working environment temperature --0~40℃
Working humidity --10%~90% RH (non-condensing)
Storage temperature --- -40 to 70 ° C
Storage humidity --5%~90% RH (non-condensing)

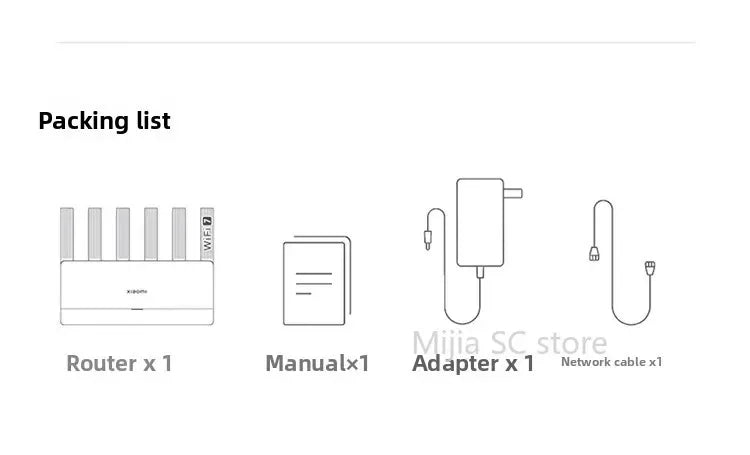

Packing list
Router ×1
Instructions ×1

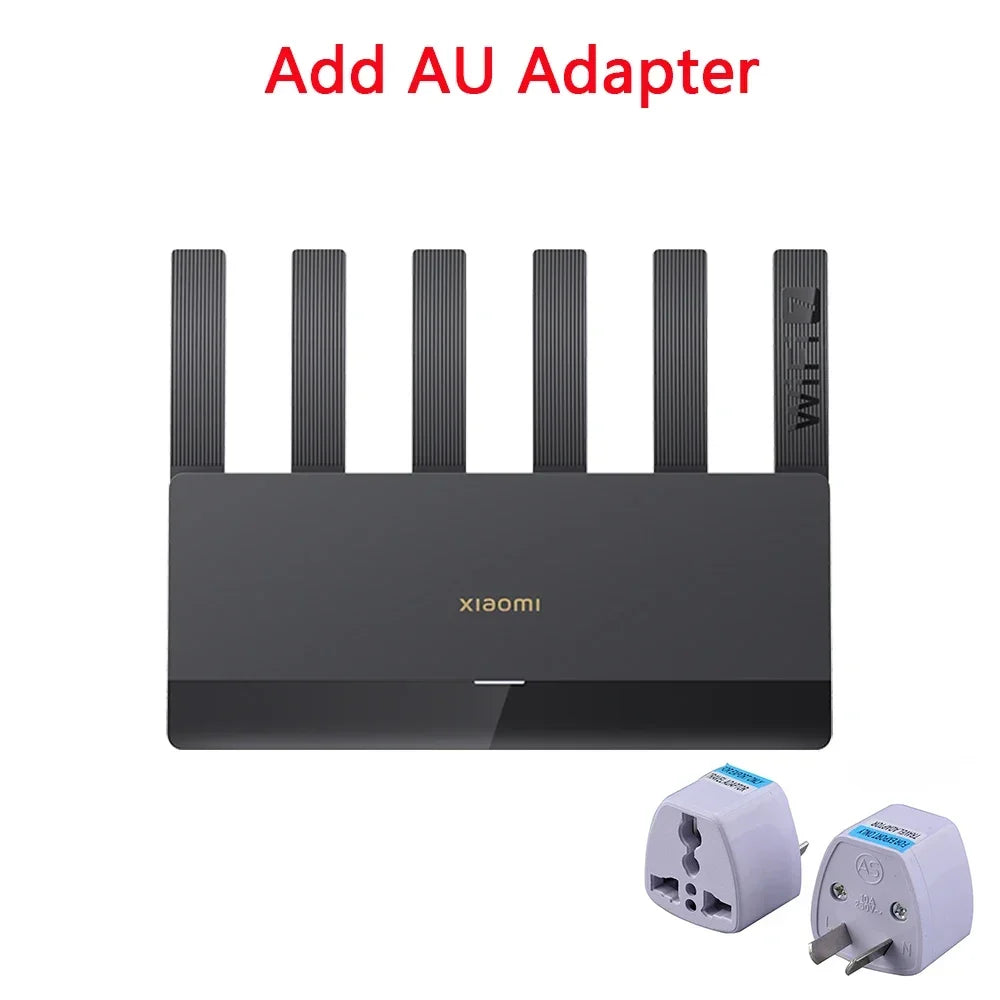

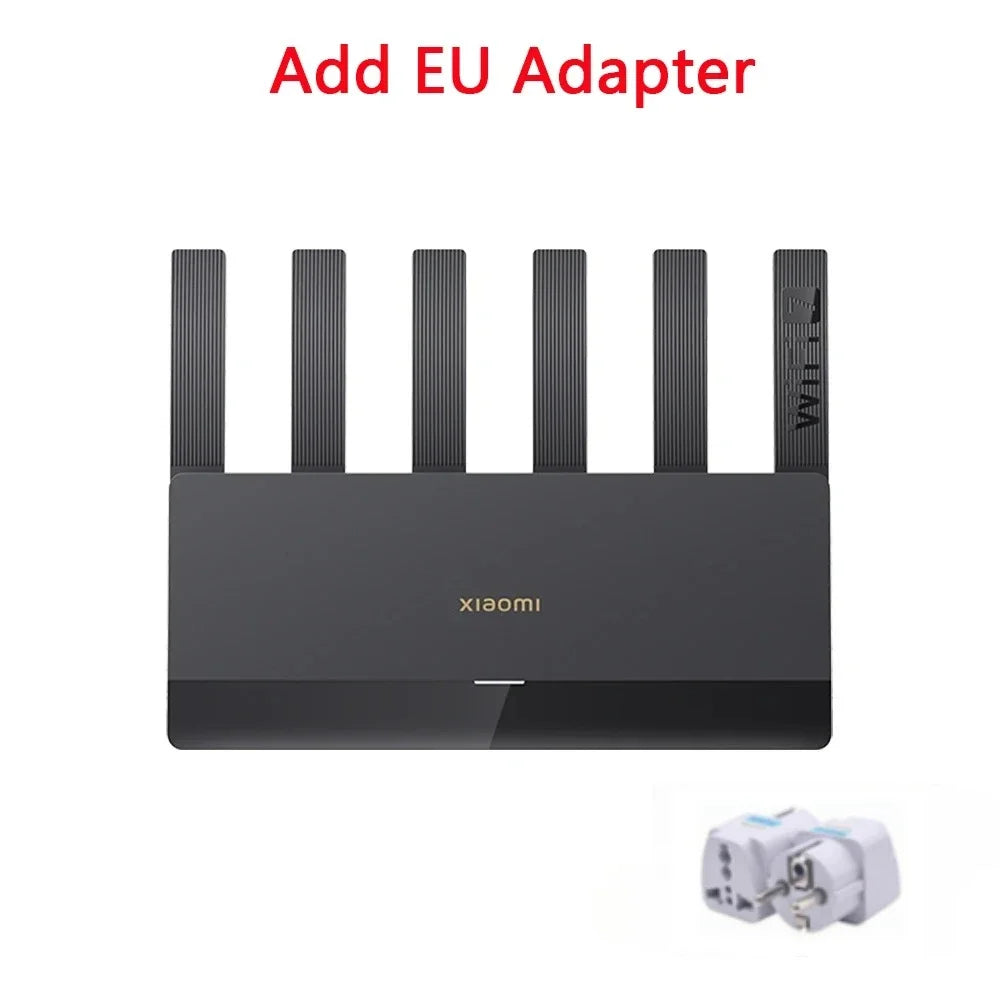

cn adapter x 1
Network cable x 1

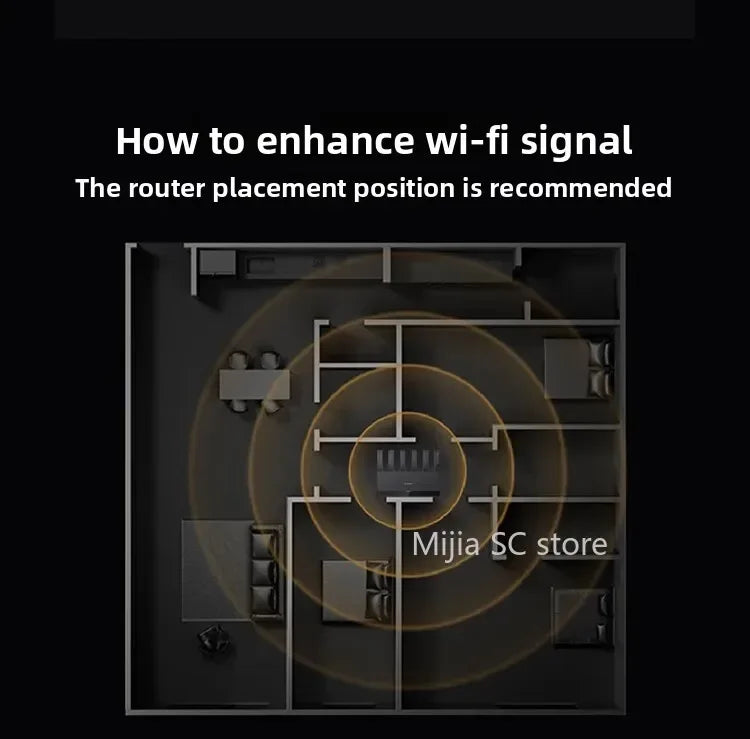

How can I boost my Wi-Fi signal
Not recommended position
1. Metal shielding boxes, such as weak current boxes, closed metal cabinets, etc
2. Block more positions, such as the storage cavity embedded in the cement wall, the corner of the sofa and other furniture, and the shoe cabinet/TV cabinet
3. Near electrical appliances with interference, such as microwave ovens, induction stoves, computer main box power supplies, household generators, wireless light cats, etc
4. The edge of the house, such as balcony, toilet, laundry room, etc
Suggested location
1. Open, unobserved location: such as TV cabinet, coffee table, etc
2. The location of the house near the center
3. The router is best placed 1 meter above the ground, not on the ground
4. In order to ensure the performance of the router, it is recommended to use the product upright
