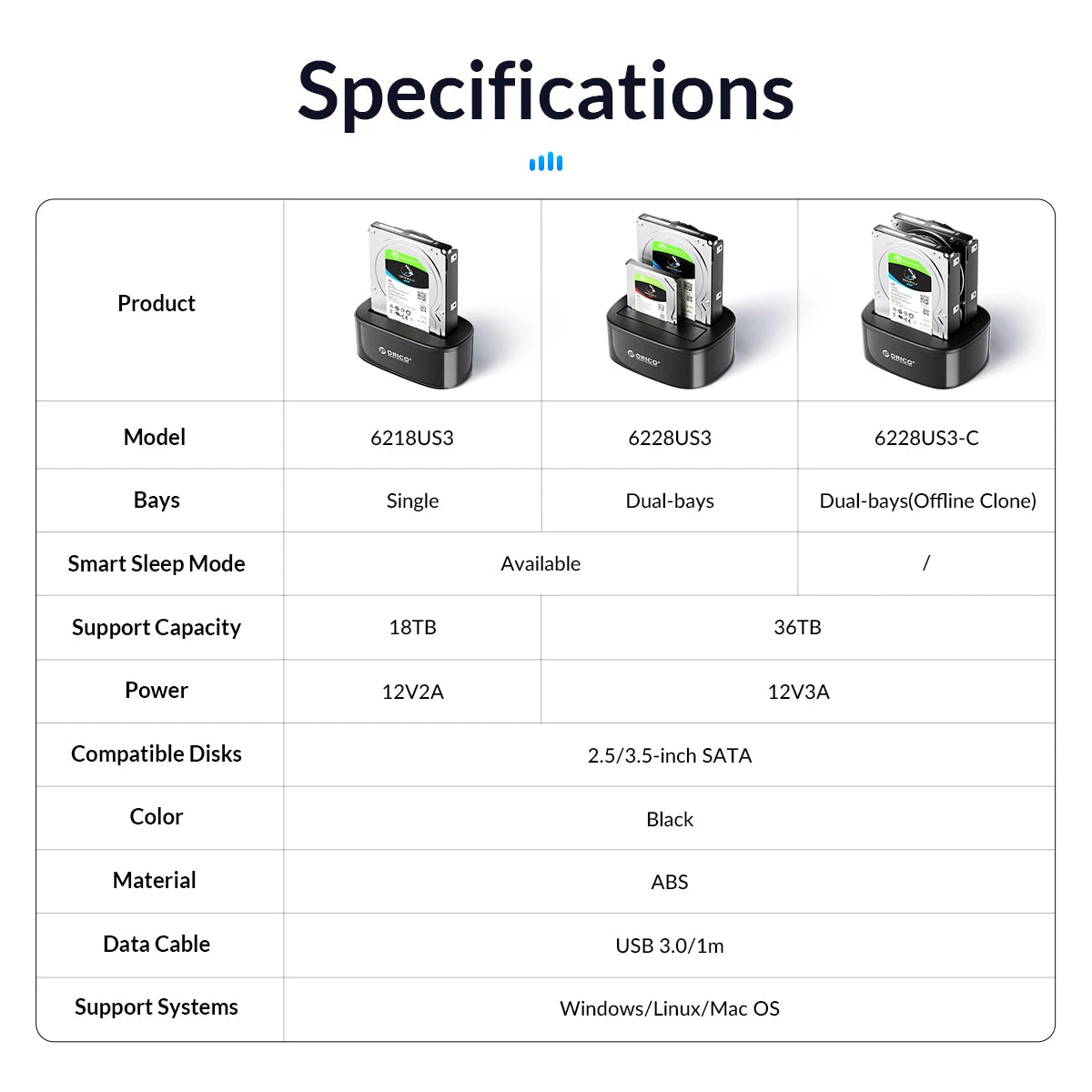

SPECIFICATIONS

Brand Name: Orico

Case Material: Plastic

Certificate: CE/FCC/3C/ROHS

Data Cable: USB3.0 / 1 Meter

Dimension: 142*110*57.5mm

External Interface: USB

Feature 1: Tool Free

Feature 2: Without drives

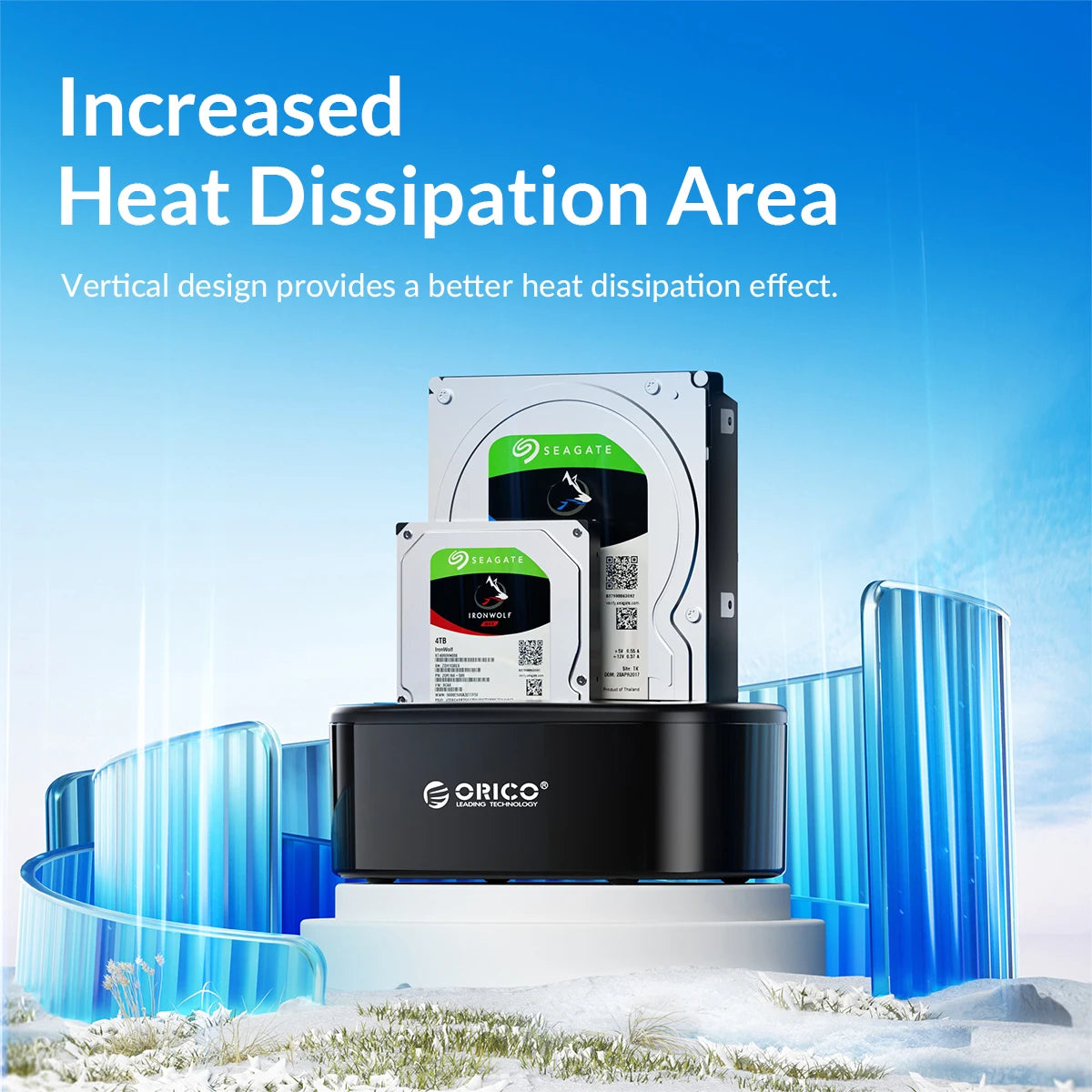

Feature 3: Vertical Heat Dissipation

Feature 4: Blue LED Indicator

Function 1: Offline Clone Function

Function 2: Hot-swap

Function 3: Auto-Sleep

Function 4: Support UASP Transfer Protocol

High-concerned chemical: None

Interface: USB3.0 Type-B

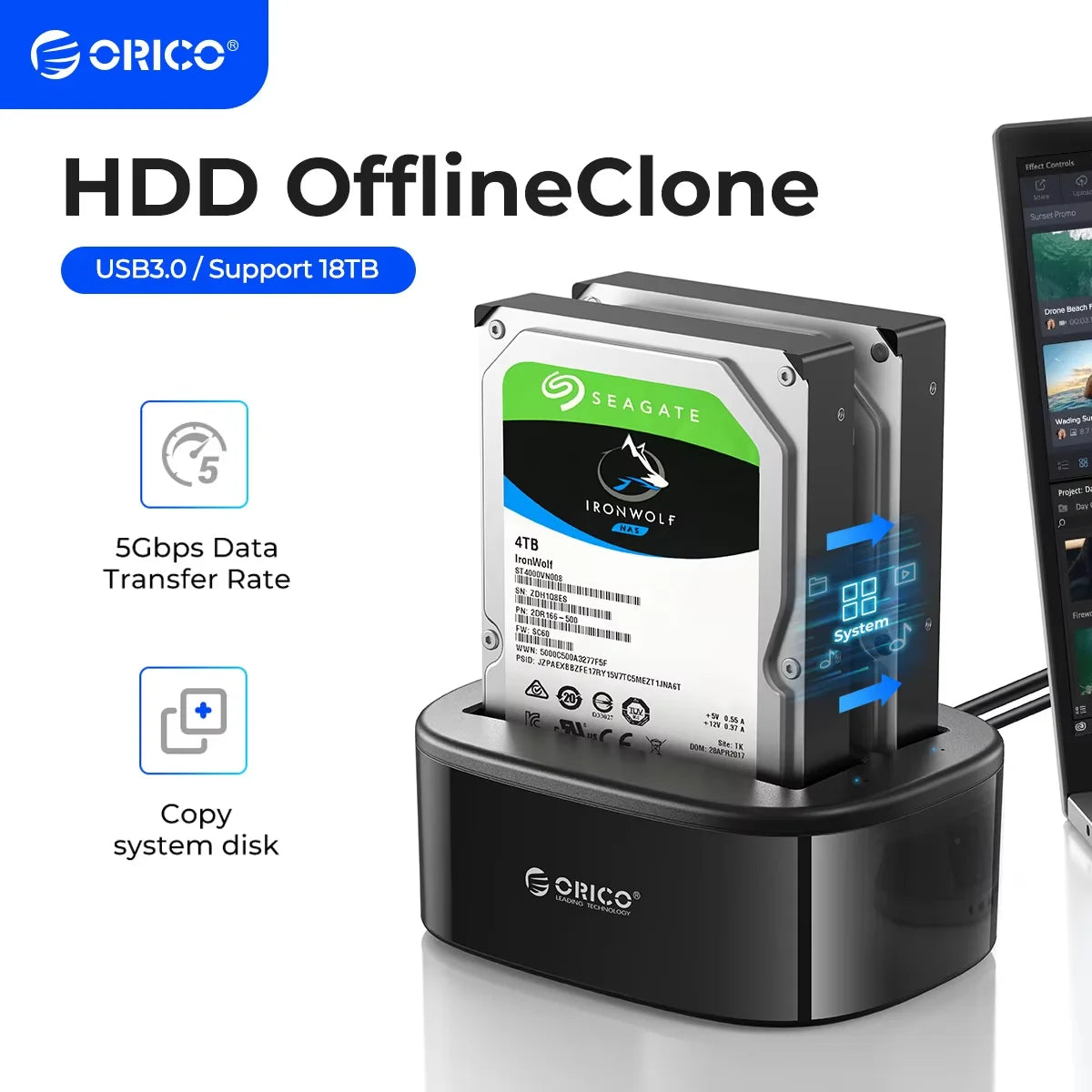

Item: ORICO USB 3.0 to SATA Dual-Bay Hard Drive Docking Station

Model Number: 6228US3-C-BK

Note: Not Including the Hard Drive

Origin: Mainland China

Package: Yes,ORICO Retail Box

Plug Type: EU Plug,US Plug,AU Plug,UK Plug

Power Adapter: 12V3A /EU/US/UK Plug

Size: 2.5",3.5"

Support HDD: 2.5''/3.5'' SATA HDD/SSD

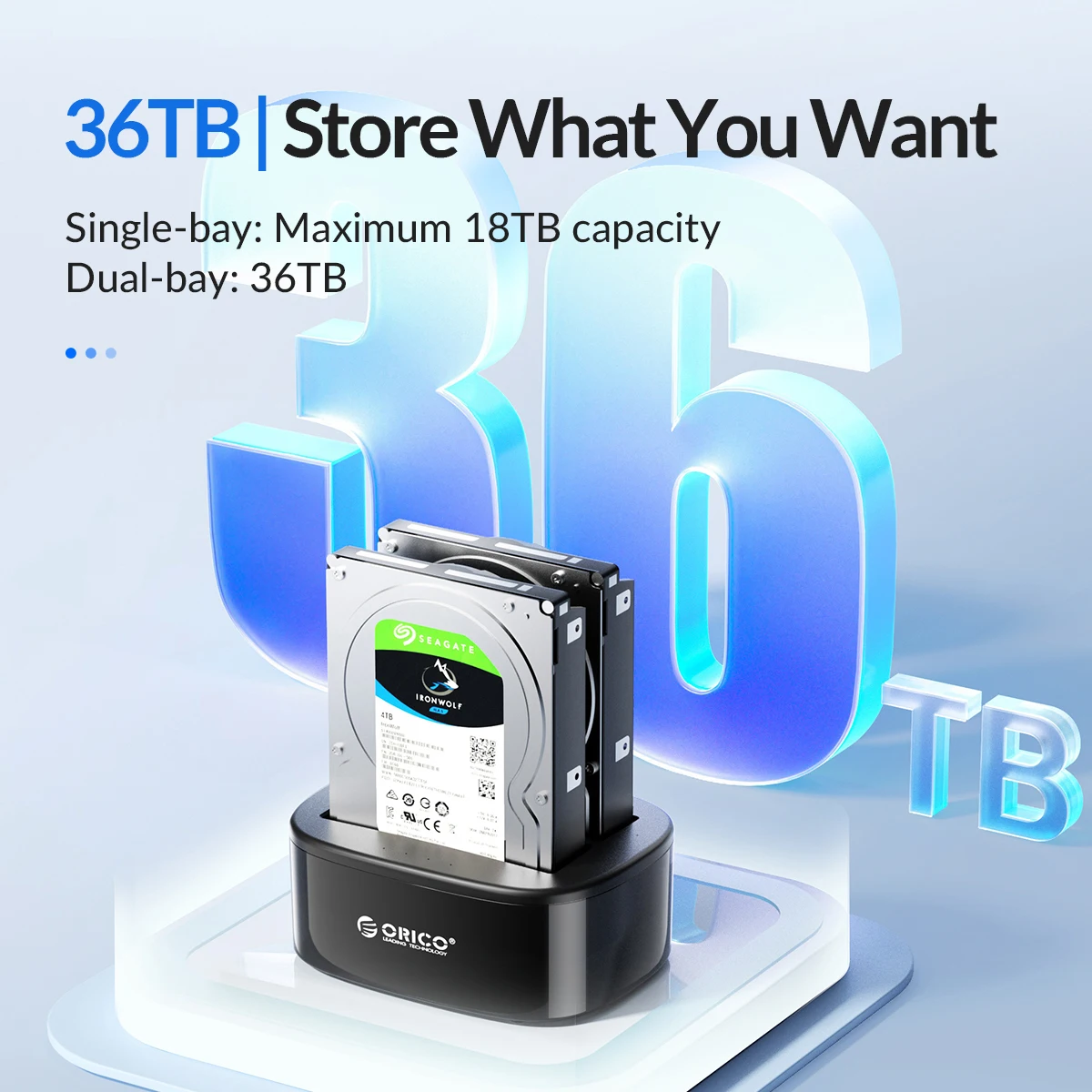

Supporting Hard Drive Capacity: 16TB*2

Transmission Speed: 5Gbps

Product Description(Color:2-Bay)

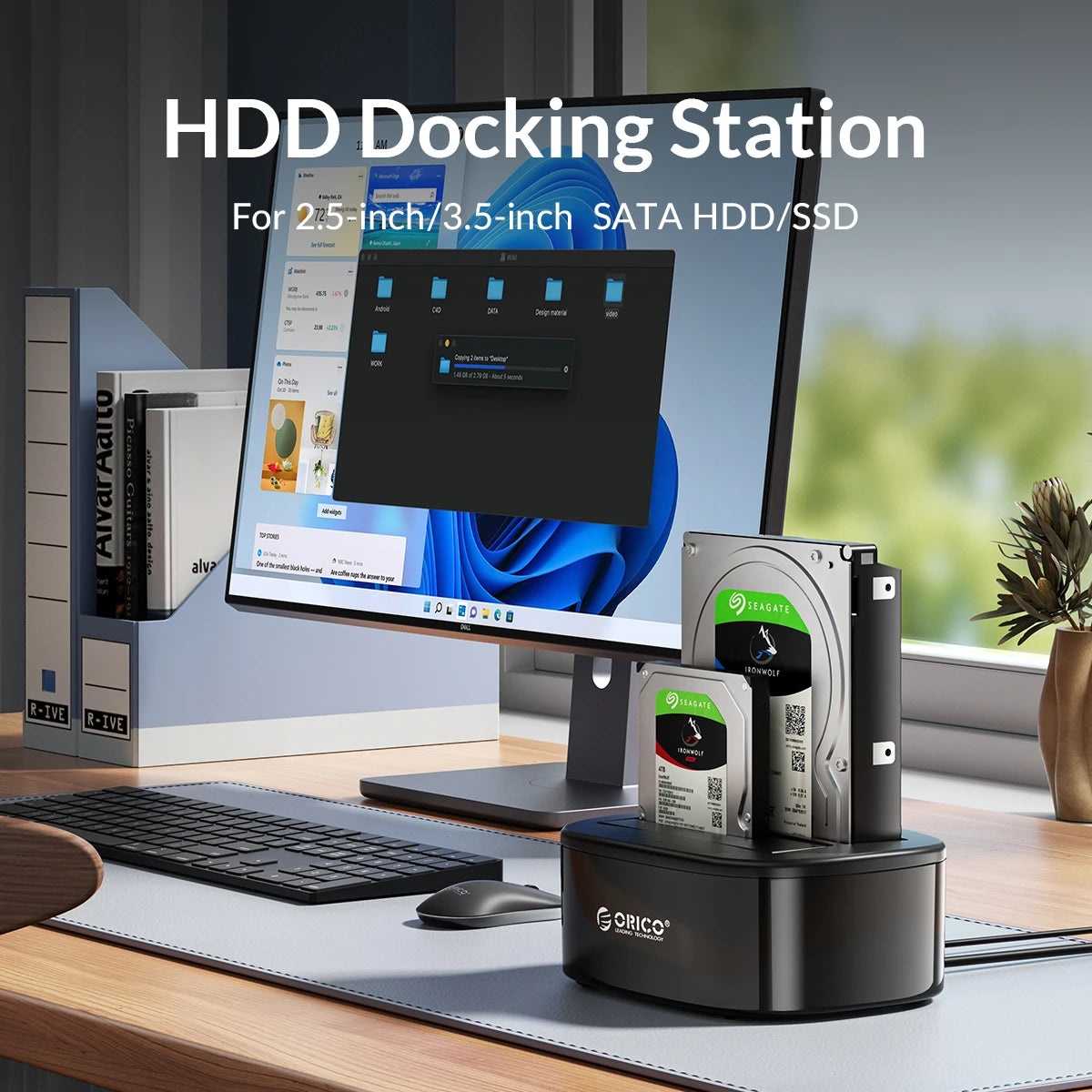

ORICO Dual-bay hard drive docking station.This docking station compatible with 2.5 inch or 3.5 inch HDD/SSD up to 16TB per bay, provide a more convenient way of transmitting data between your hard drive and computer through an available USB port.

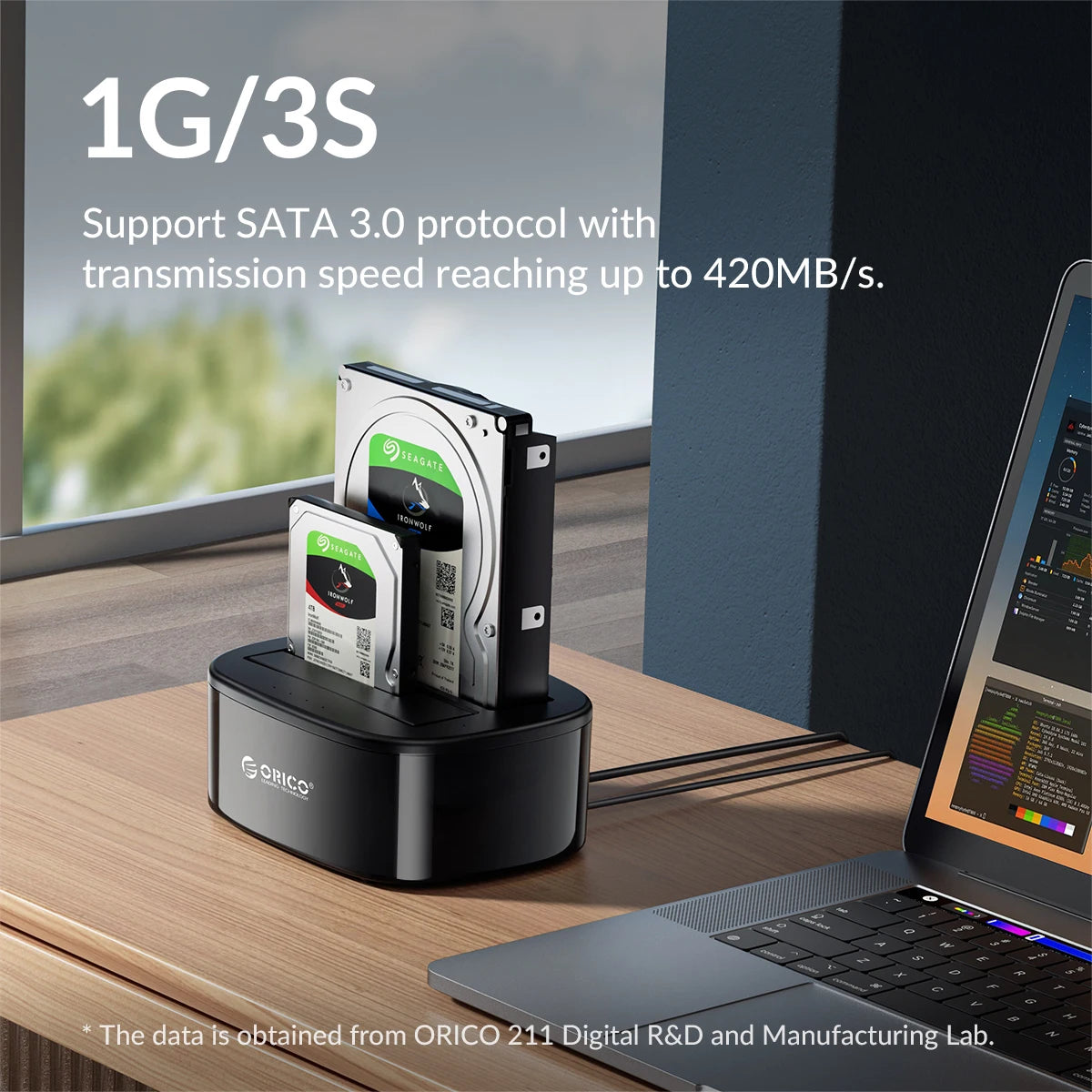

Superspeed USB 3.0 and SATA III

Data transfer rate can reach up to 5Gbps, 20% faster than traditional USB 3.0 with UASP Transfer Protocol; UASP functionality requires UASP capable host controller and operating system

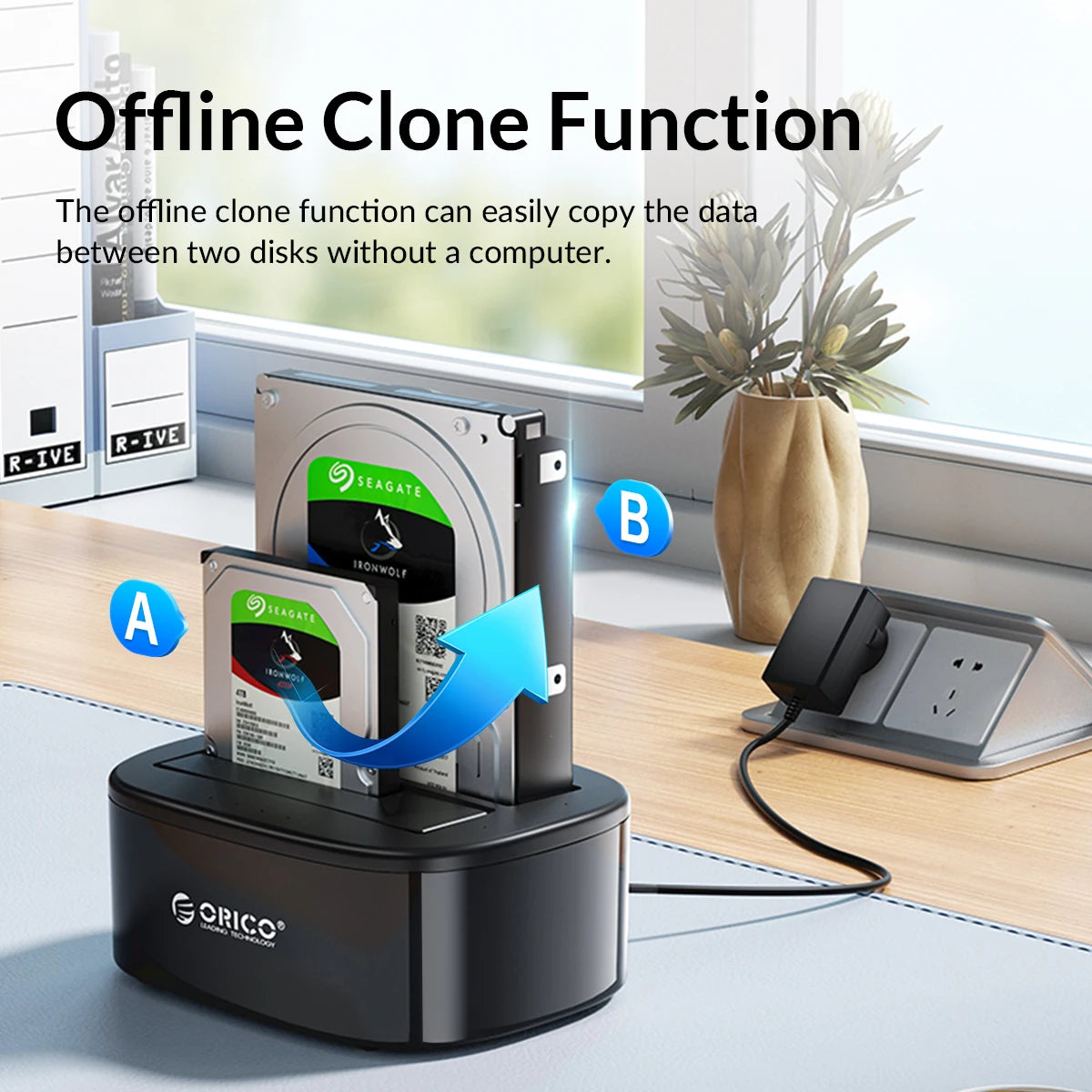

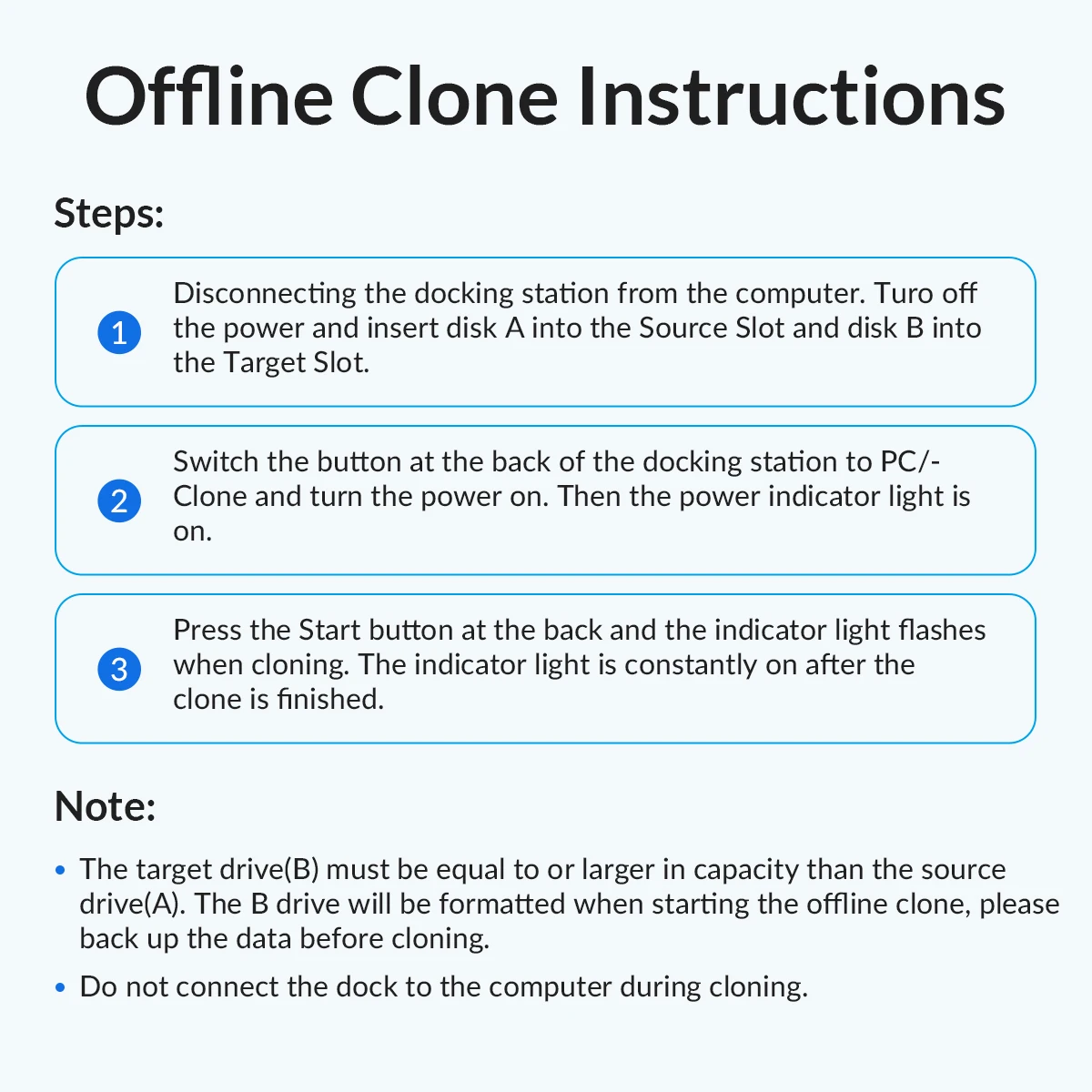

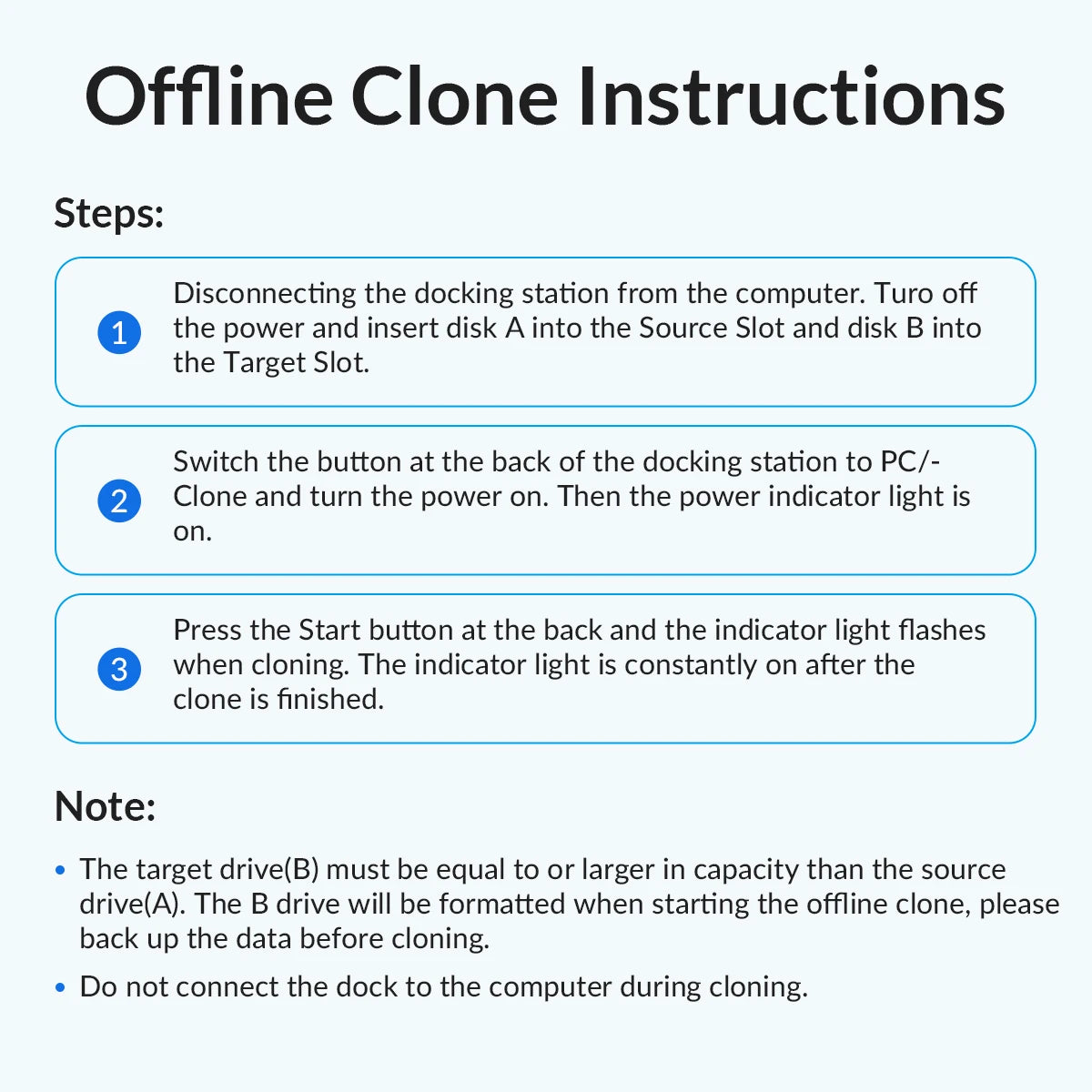

Offline clone function

----Make sure that the USB cable is disconnected from your computer.

1. Insert one hard drive in the Source bay, other drive in the target bay(The capacity of Target drive must be equal or bigger than Source drive.)

2. Push the PC / CLONE switch on the back of the hard drive to the CLONE side.

3. Connect power supply and press the POWER switch.

4. Then press the START Button on the back.

5. A Blue LED will flash on 20% indicating that the cloning process has begun.

6. The cloning process is complete when ALL the lights turn solid Blue (20%-100%).

7. Finally press the POWER switch and eject your drives.

Notes:
1.Please backup files in the target hard drive before cloning. Any files in target hard drive will be overwritten when offline cloning occurs, If the Target Disk Data is Still Useful, Please Use your Computer to Make a Backup First.
2.To avoid data loss, do not remove or insert hard drives when one drive is working in the docking station.
3.Make sure the USB cable is disconnected when using offline clone function

Attention

HDD/SSD is not included
Please power off the docking station before removing

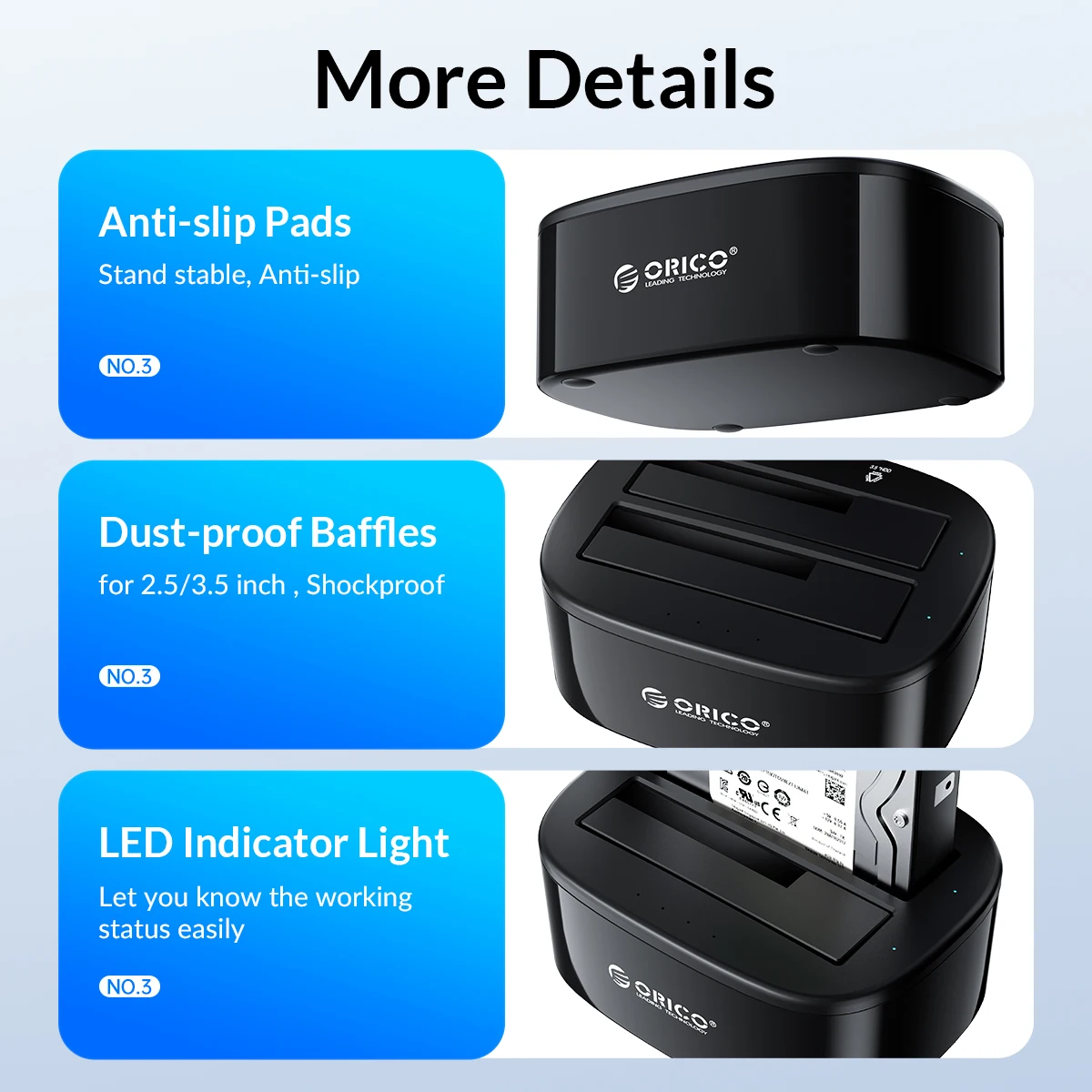

Features

*ON/OFF power switch
*LED light indicates the working status

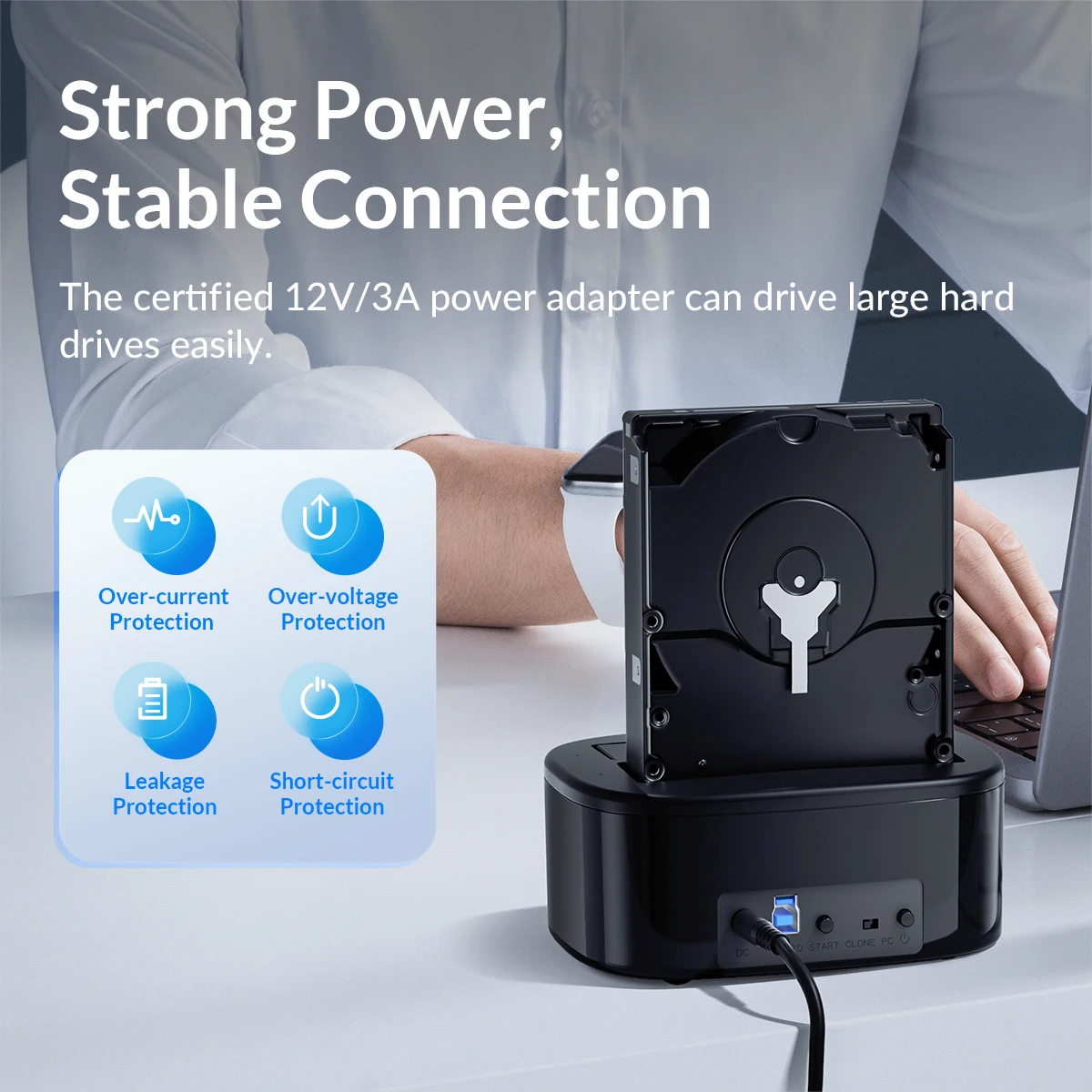

*12V3A power adapter ensures enough power for devices

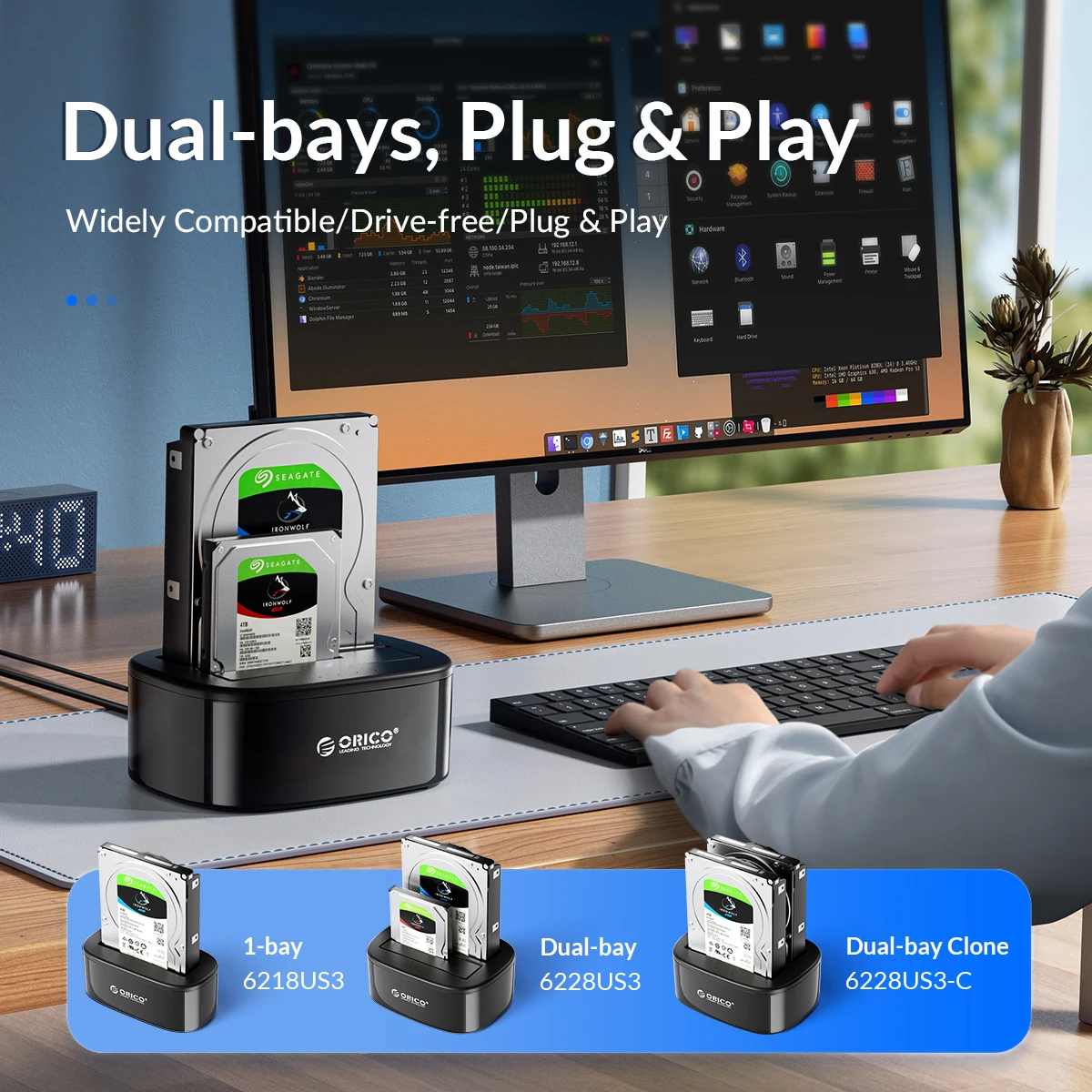

*Plug and play, hot-swapping, no drivers or applications needed
*Compatible with most major systems in market such as Windows, Linux and Mac OS

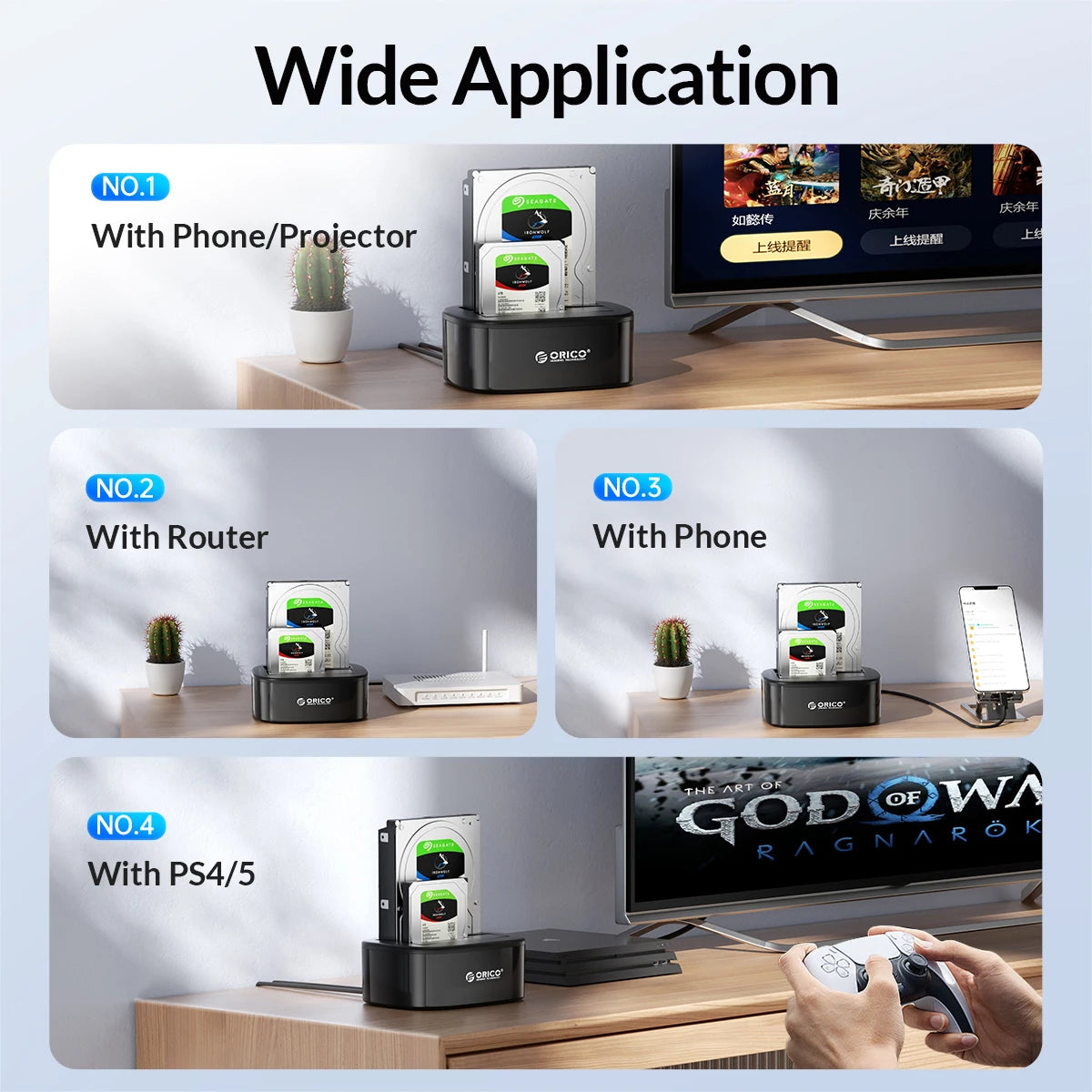

*Widely Used be connected to PC/TV/PS4/Router

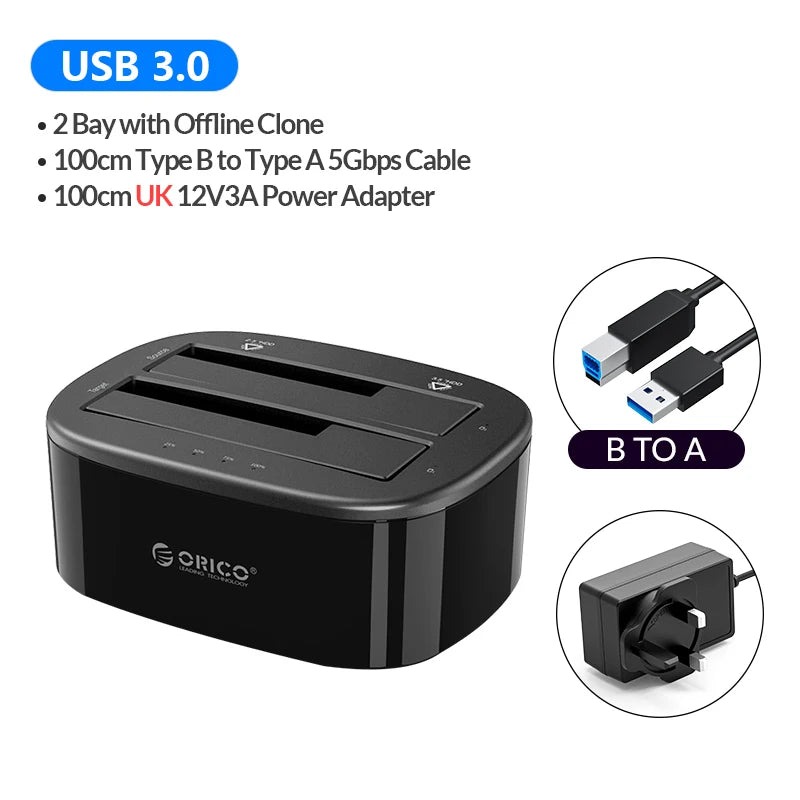

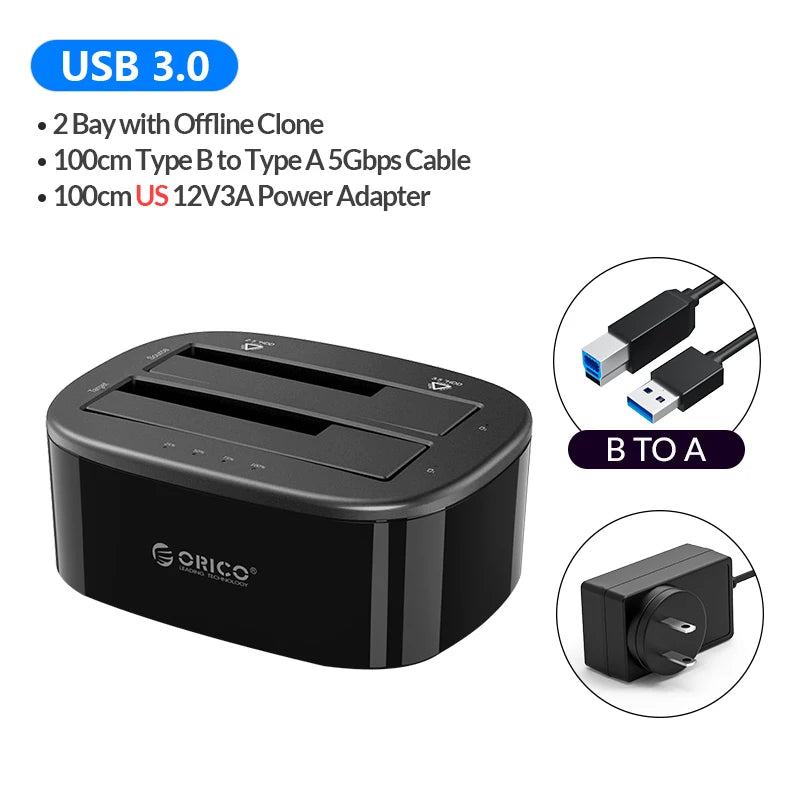

What is in the box!!!

1 x ORICO Dual-bay docking station
1 x 12V3A Power Adapter
1 x 3.3 FT USB3.0 Cable
1 x User Manual
1 x Service Card

PLUS! ORICO's Worry-free Warranty Policy

We provide an 12 month warranty period. The warranty coverage starts when the package is shipped. We also offer lifetime technical support for purchases made directly via our ORICO direct store.
